Graphics

Components for rendering graphical elements such as shapes, ribbons and color scales.

KShape

Renders an SVG shape using the @kalisio/common-graphics library. Supported shape types include circle, rect, diamond, triangle, star5, hexagon, and more.

Props

Prop	Type	Default	Description
options	Object	— (required)	Shape descriptor passed to Graphiks.renderShape(). Must include at least a shape key with a registered shape type name.
tooltip	String	undefined	Text displayed in a Quasar tooltip on hover.

Usage

<!-- Basic circle -->
<KShape :options="{ shape: 'circle', size: 32 }" />

<!-- Triangle with a custom color -->
<KShape :options="{ shape: 'triangle', size: 24, color: '#e53935' }" />

<!-- With a tooltip -->
<KShape :options="{ shape: 'star5', size: 28 }" tooltip="Favorite" />

---

KRibbon

Renders a diagonal banner ribbon, typically used to overlay a corner of a card or panel (e.g. "Beta", "New").

Props

Prop	Type	Default	Description
text	String	undefined	Text displayed inside the ribbon.
size	Number	32	Height of the ribbon in pixels. Font size is derived as size - 8.
color	String	'primary'	Background color. Accepts any Quasar palette name, HTML color name, or CSS color value.
textColor	String	'white'	Text color. Same accepted formats as color.
letterSpacing	Number	2	Letter spacing in pixels.
position	String	'top-left'	Corner where the ribbon is anchored. One of top-left, top-right, bottom-right, bottom-left.
origin	Array	[50, 50]	[x, y] offset in pixels from the chosen corner, used to fine-tune positioning.

Usage

<!-- Top-left "Beta" ribbon -->
<KRibbon text="Beta" />

<!-- Bottom-right ribbon with a custom color -->
<KRibbon text="New" position="bottom-right" color="#43a047" :origin="[60, 60]" />

<!-- Larger ribbon with adjusted letter spacing -->
<KRibbon text="Alpha" :size="40" :letterSpacing="4" color="deep-orange" />

---

KColorScale

Renders a continuous or discrete color scale on an HTML canvas. The scale automatically redraws when its container is resized.

Props

Prop	Type	Default	Description
label	String	undefined	Title displayed above the color bar.
colors	String | Array	'OrRd'	Color scheme. Accepts a Chroma.js scale name (e.g. 'OrRd', 'Viridis') or an array of CSS color values.
domain	Array	[0, 1]	Value range [min, max]. Use a reversed array (e.g. [1, 0]) to reverse the scale direction.
classes	Array	null	Class boundaries for a discrete scale. When set, the scale renders one colored box per interval. When null, the scale is continuous.
unit	String	undefined	Unit identifier. Reserved for future use.
layout	Object	see below	Layout configuration object.
direction	String	'horizontal'	Orientation of the scale. One of horizontal, vertical.

layout object

Key	Type	Default	Description
gutter	Number	4	Spacing in pixels between the label, the color bar and the ticks.
label.size	Number	12	Label font size in pixels.
label.font	String	'Arial'	Label font family.
label.color	String	'black'	Label text color.
label.align	String	'left'	Label text alignment. One of left, center, right.
bar.height	Number	16	Color bar height in pixels (horizontal mode).
bar.width	Number	16	Color bar width in pixels (vertical mode).
ticks.size	Number	10	Tick label font size in pixels.
ticks.font	String	'Arial'	Tick label font family.
ticks.color	String	'black'	Tick label text color.
ticks.format	Object | Function	{ notation: 'auto', precision: 3 }	Tick formatting. Accepts a mathjs format options object or a function ({ tick, previousTick }) => string. Returning a falsy value hides the tick.

Usage

Continuous horizontal scale

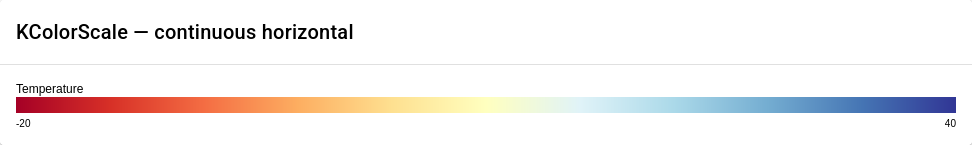

<KColorScale label="Temperature" colors="RdYlBu" :domain="[-20, 40]" />

Discrete horizontal scale

<KColorScale
  label="Elevation"
  colors="OrRd"
  :domain="[0, 3000]"
  :classes="[0, 500, 1000, 2000, 3000]"
/>

Continuous vertical scale

<KColorScale
  label="Wind speed"
  colors="Viridis"
  :domain="[0, 30]"
  direction="vertical"
/>

Reversed domain

<KColorScale colors="Blues" :domain="[100, 0]" />

Custom tick formatting

<KColorScale
  :domain="[0, 1]"
  :layout="{
    ticks: {
      format: ({ tick }) => `${(tick * 100).toFixed(0)} %`
    }
  }"
/>
