service-k2

3D terrain server for Cesium tiles

Overview

service-k2 is a lightweight service that exposes different endpoints related to terrain data:

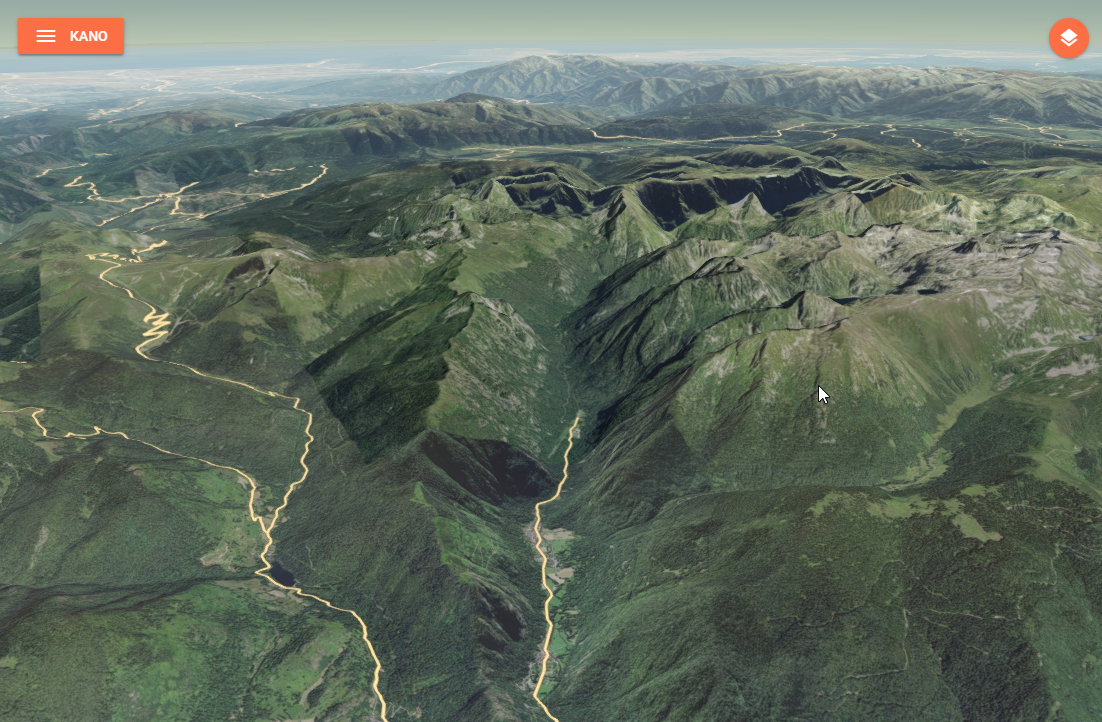

• a 3D terrain tiles endpoint that lets you access quantized meshes stored in MBTiles for Cesium,

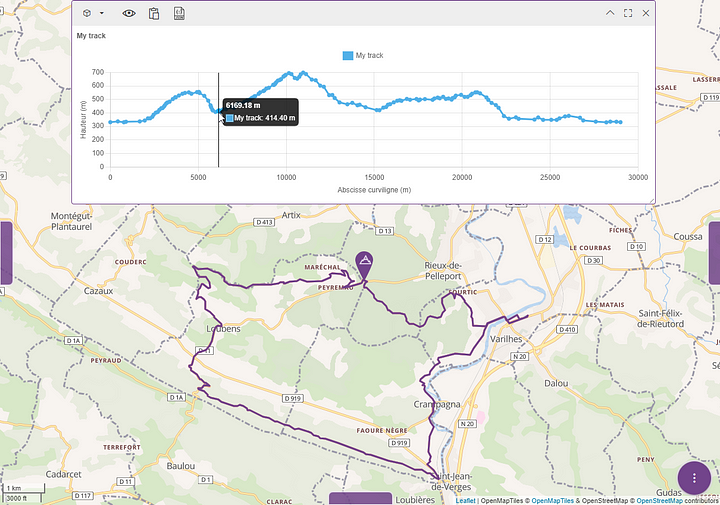

• an elevation endpoint that lets you compute the elevation of the terrain under a linear geographical element.

For 3D terrain tiles, the service always serves a single terrain file on the root path (/), taken from the TERRAIN_FILEPATH environment variable (default /mbtiles/terrain.mbtiles). In addition, if the TERRAIN_FOLDER environment variable is set, every *.mbtiles file found in that folder is also served, each under a path derived from its basename.

WARNING

Serving the single TERRAIN_FILEPATH file is always active, even when TERRAIN_FOLDER is set. That file must therefore exist, otherwise the service fails to start.

Data

service-k2 needs data to serve, and its two features rely on different datasets — so to run the service locally (or in production) you have to provide the data for whichever feature you want to use:

• 3D terrain tiles are served from quantized-mesh .mbtiles files, configured through TERRAIN_FILEPATH or TERRAIN_FOLDER (see Configuration). See Converting GeoTIFF to MBTiles to produce them.

• Elevation computation reads a Digital Elevation Model (DEM/MNT) in a GDAL-readable format (GeoTIFF or VRT). By default the DEM is picked from /mbtiles depending on the requested resolution:

  Resolution	DEM file
  < 250 m	/mbtiles/srtm.vrt
  < 500 m	/mbtiles/GMTED2010/mx75.tif
  < 1000 m	/mbtiles/GMTED2010/mx15.tif
  otherwise	/mbtiles/GMTED2010/mx30.tif

  You can bypass this selection with the demOverride parameter, resolved relative to /mbtiles. Note that this /mbtiles root is not configurable through an environment variable. The /elevation endpoint also requires GDAL (gdalwarp) to be installed on the host or image at runtime.

Installation

Install with your preferred package manager:

pnpm

pnpm add @kalisio/service-k2

npm

npm install @kalisio/service-k2

yarn

yarn add @kalisio/service-k2

Configuration

Here are the environment variables you can use to customize the service:

Variable	Description	Defaults
PORT	The port to be used when exposing the service	8080
BODY_LIMIT	The size limit of the request body	100kb
TERRAIN_FILEPATH	Path to a single terrain .mbtiles file (single-file mode)	/mbtiles/terrain.mbtiles
TERRAIN_FOLDER	Path to a folder of *.mbtiles terrain files (multi-file mode)	-

API

The HTTP API exposed by service-k2 is documented on the API reference page.

Testing

The test suite uses Vitest and exercises the elevation computation against a bundled DEM through GDAL. It is skipped automatically when GDAL is not installed.

To run the tests, use the test script:

pnpm test

Converting GeoTIFF to MBTiles

1. Run a cesium-terrain-builder-docker container with a volume mounted on the folder with your GeoTIFF files:

docker run -it --name ctb -v "./path/to/geotiff/:/data" tumgis/ctb-quantized-mesh

2. Build a virtual dataset with all of the GeoTIFF files:

gdalbuildvrt dataset.vrt /data/*.tif

3. Reproject data to EPSG:4326:

gdalwarp -s_srs EPSG:2154 -t_srs EPSG:4326 dataset.vrt dataset-EPSG4326.vrt

4. Build overview images:

gdaladdo -r average dataset-EPSG4326.vrt 2 4 8 16

5. Generate quantized meshes with cesium-terrain-builder-docker:

ctb-tile -f Mesh -C -N -o /target/path/for/generated/quantized/meshes/ dataset-EPSG4326.vrt

6. Generate layer.json:

ctb-tile -f Mesh -C -N -l -o /target/path/for/generated/quantized/meshes/ dataset-EPSG4326.vrt

7. Outside of the container, get the quantized_mesh2mbtiles.py script from this project, and generate the MBTiles file from the quantized meshes:

python quantized_mesh2mbtiles.py /path/to/quantized/meshes/ terrain.mbtiles
